Confronting Nuclear War

Mortality on a Global Scale




The Russians detonate their first atomic bomb at Semipalatinsk, Kazakh SSR and become the second nuclear power.  The United States was startled at having lost their nuclear monopoly so soon.  Julius and Ethel Rosenberg became the first American civilians executed for espionage after having been convicted of passing nuclear weapons secrets to the Soviet Union.



The Soviet Union's first atomic bomb was comparable to America's Gadget and Fat Man with an explosive force of 22 kilotons of TNT.  It was an implosion type weapon with a solid plutonium core.  The United States gave it the code name of Joe 1, after Joseph Stalin.



The alliance between the Western democracies and the Soviet Union during the war with Germany was always a matter of necessity, the marriage of convenience.  The leaders of East and West shared few convictions and regarded each other with suspicion.  Development of the atomic bomb was not a matter to be trusted with Stalin's Russia although the Soviet leader had his own sources within the Manhattan Project and displayed little emotion when America's President Truman spoke of a miraculous new weapon during their meeting in Potsdam.  The lessons learned from the Great Patriotic War meant Russia was safe being second to no one and no Soviet leader, especially Stalin, would tolerate a world of American nuclear hegemony.



Fear of Nazi Germany led to the development of the atomic bomb but with Berlin's surrender and bitter conflict continuing in the Pacific it seemed only natural to President Truman for him to order the use of this weapon in hopes of bringing the war with Japan to an end.  Japan's unconditional surrender following the destruction of Hiroshima and a second atomic attack on Nagasaki brought a rapid demobilization of American military forces.  Yet events quickly demonstrated that the perceived interests of the United States and those of the Soviet Union were in direct conflict.



Secretary of State Dean Acheson had not anticipated military action by Communist forces in North Korea when he placed South Korea outside America's vital interests.  Stalin, in turn, was surprised by the determined military response of the United States to developments on the Korean peninsula.  Both countries quickly learned it was dangerous to miscalculate the other.  The Korean War more than any other single event made clear a Cold War did exist between the globe's two emergent super powers.



President Dwight Eisenhower, famed for overseeing the successful amphibious assault at Normandy in 1944, was determined to keep military costs to a minimum by relying on the threatened use of nuclear weapons in response to any military move on Western Europe by the Soviet Union's still large conventional army.  Nuclear bombs and the means of delivering them was vastly cheaper than maintaining armed divisions.



The ardent anti-Communist John Foster Dulles, Secretary of State under Dwight Eisenhower, was a strenuous proponent of massive retaliation, believing that releasing unrestrained force was the best deterrence to aggression.  During the course of the 1950s Russia's own massive retaliatory power grew placing increased dependence on the credibility of America's nuclear threat.  Citizens of Berlin, for instance, could only wonder whether the United States government was willing to risk destruction of its own cities in defense of this German city isolated deep within the Communist block.



General Maxwell Taylor, Army Chief of Staff under Eisenhower, called for a Strategy of Flexible Response.  His argument for an American military capable of handling threats with conventional weapons would require enormous increases in defense spending and his belief in funding the means to fight limited wars found a receptive ear only when John Kennedy entered the White House.  Within a couple of years President Kennedy introduced American troops into Southeast Asia and Maxwell Taylor would serve briefly as Ambassador to South Vietnam.



Herman Kahn made his reputation for speaking the unthinkable while employed at the RAND Corporation whose mission it was to freely explore the range of options available in thermonuclear war.  His detached approach to gaming the catastrophic made him the basis for the bizarre, mad character that was the centerpiece of the motion picture Dr. Strangelove.





Two less flamboyant colleagues of Herman Kahn at the RAND Corporation were the celebrated mathematicians John von Neumann and Oskar Morgenstern.   Their work in game theory led them to believe in the ultimate interdependence of the United States and the Soviet Union.  The two nation's fates were linked and the decision making of each would ultimately require keeping the interests of their potential enemy always in mind in order to prevent antagonisms from getting out of hand.  A practical application of this mindset occurred in the peaceful remedy to the Cuban Missile Crisis where each side avoided backing the other into a corner.



This obscure Harvard professor gained national attention with the publication of his book, Nuclear Weapons and Foreign Policy, in which he argued that military means and diplomatic approaches are not separate ventures but interrelated when arbitrating differences between confrontational nations.  Kissinger would become a seminal adviser to Richard Nixon during a period of relative rapprochement between America and her Cold War adversaries China and the Soviet Union.

Thursday, December 29, 2011

Tornado GR4

Panavia
C L I C K     T O     E N L A R G E


The all-weather, low-level strike aircraft Tornado was the joint effort of the UK, Italy and Germany initiated in the early 1970s in the midst of the Cold War.  With nearly 1,000 aircraft produced the economies of scale made up for duplications in the multiple country effort.  Variations were produced to meet the different country's specific needs.  The photo is 800 x 600 and is at SiaPhoto.

TORNADO GR4

Crew:                    2 - pilot, radar officer

Power:                  2 - Turbo-Union 7298 kg / 16,075 lb afterburning thrust
                                   RB199-103 turbofans

Max. Speed        2336 kph / 1452 mph
Ceiling:                15,250 m / 50,000 ft
Range:                 2778 km / 1726 miles
Climb:                  9150 m / 30,000 ft in 2 minutes

Weight -
Empty:                13,901 kg / 30,620 lb
Max. Take Off:   27,975 kg / 61,620 lb

Size -
Wingspan:         13.91 m / 45 ft 8 in, spread
Wing Area:        26.6 sq m / 286.3 sq ft at 25 degrees sweptback
Length:               16.7 m / 54 ft 10 in
Height:               5.95 m / 19 ft 6 in

Armament:
                          1 - Mauser 27 mm / 1.05 in cannon
                          4 - AIM-9L Sidewinder missiles
                               8172 kg / 18,000 lb ordnance





The Tornado is designed for optimized flight at three wing positions:  25 degrees with wing slats and flaps extended provide high lift for short take off and landing capability; 45 degrees for normal flight operation; 67 degrees to achieve maximum speed.  The photo is 1100 x 775 and is posted at Reddit.



Built for rapid, low level penetration of enemy airspace the Tornado remains, after thirty years, the backbone of Britain's air strike capability.  Coming in close to the deck to crater the runways of Iraq's heavily defended airbases contributed to the loss of six Tornados during Desert Storm. Piloting your nation's most advanced combat aircraft means being assigned missions with the highest risk.  The photo above is from Patrick's Aviation.



The Tornado was intended to come in low, under the cover of darkness, even adverse weather and strike its target with precision.  It's not a nimble craft.  Don't expect the upper hand in a close quarters dogfight.  It's fast but massive and has lumbering brutish power.  But lumbering doesn't describe the ride you feel flying tree top level through mountain passes at nearly 1,000 kph / 600 mph... in nasty weather.  It's that good.  Blistering thrust, cutting edge avionics and reliable terrain following radar are packaged in the Tornado.  The picture is 640 x 426 at 180 dpi and is from a posting on Flickr.

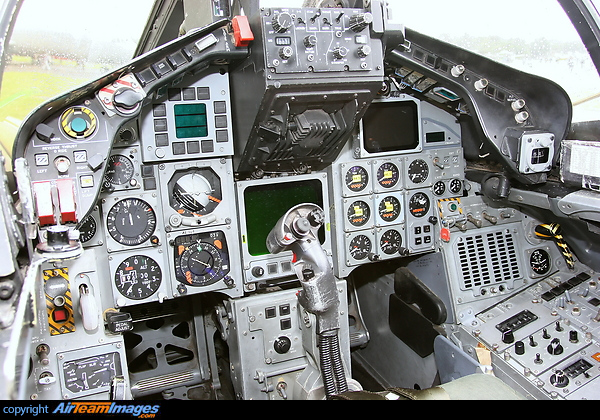

Even with a weapons officer riding tandem there is no lack of things to know, monitor and do while piloting the Tornado.  There's a steep learning curve that goes with moving into this cockpit from a less sophisticated aircraft.  Looking at it another way it's sitting in your favorite arm chair with all your toys carefully arranged in front of you.  Don't bother me.  I'm having fun.  The photo is from Air Team Images and is 600 x 420.
